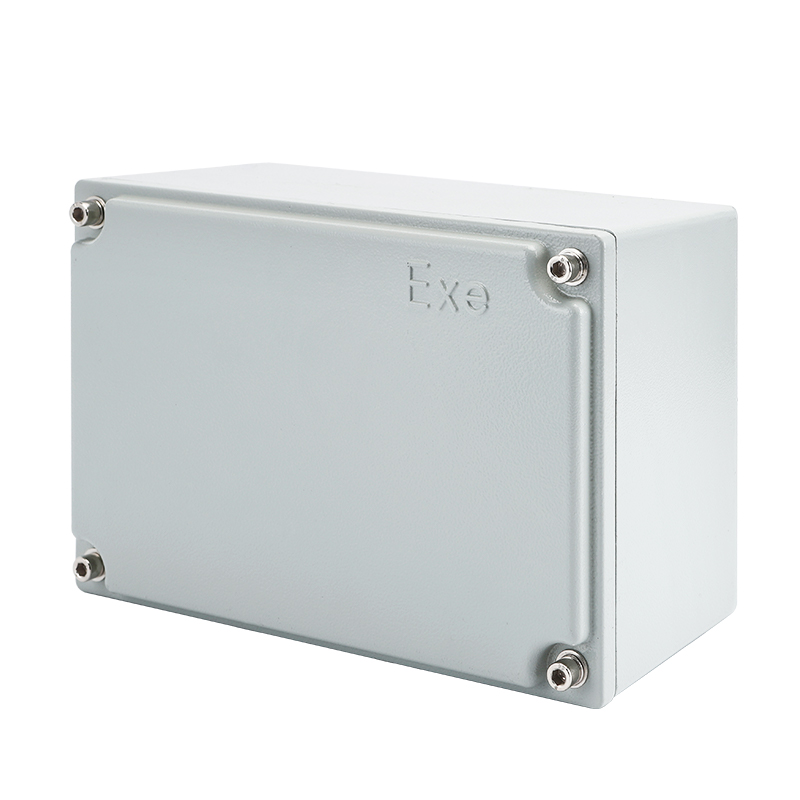

Explosion-Proof Junction Box – Increased Safety IIC

PRODUCT OVERVIEW

Product Description

The enclosure combines a corrosion-resistant aluminium body with a hinged cover and configurable cable entries for direct field wiring. Terminal layout, gland specification and mounting arrangement can be engineered around the cable schedule for control, power or instrument circuits.

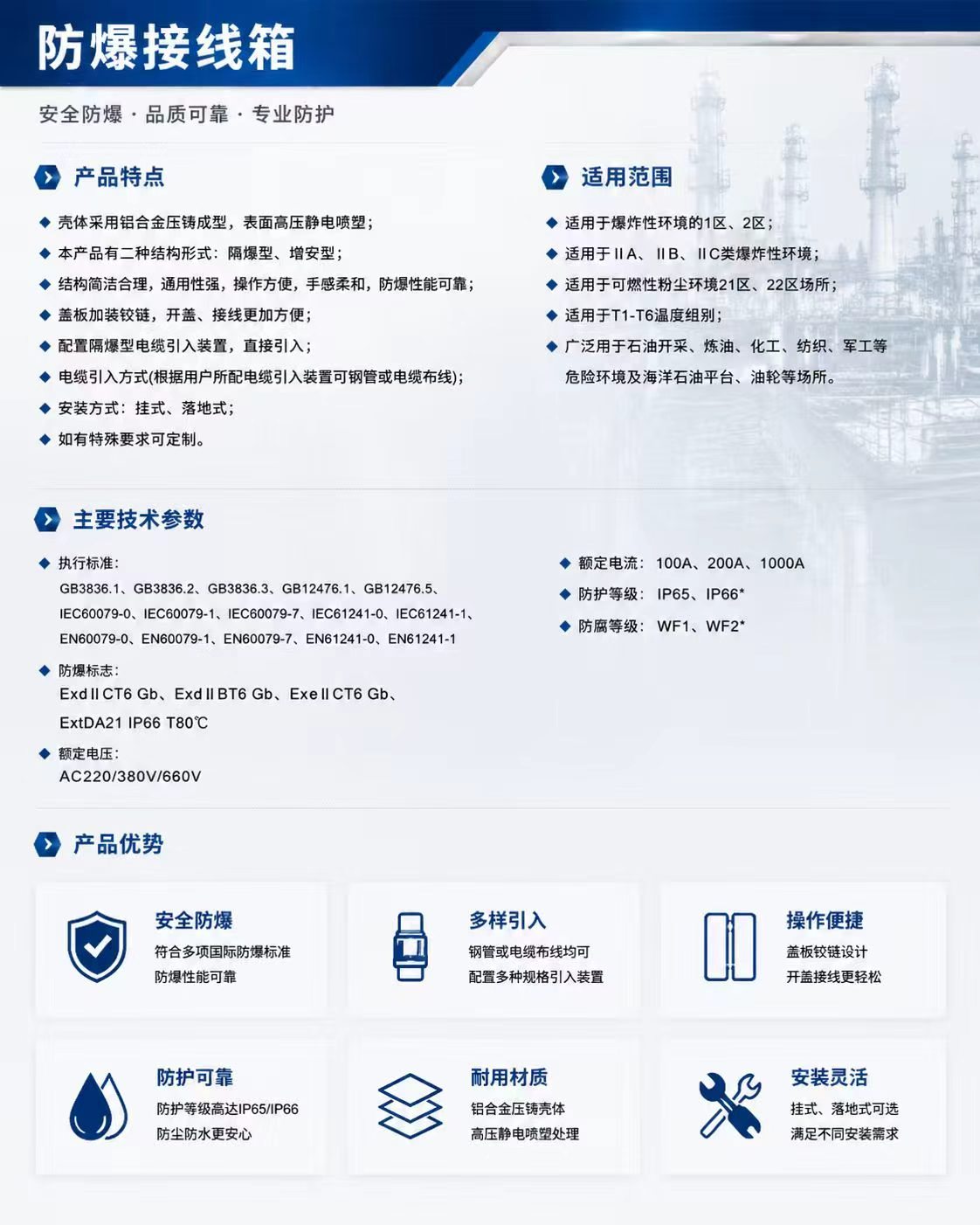

TECHNICAL DATA

Specifications

Explosion protection

ExdIICT6 Gb 、ExdIIBT6 Gb 、ExelICT6 Gb 、 ExtDA21IP66 T80°C

Rated voltage

AC220/380V/660V

Rated current

100A、200A、1000A

Ingress protection

IP65、IP66

Corrosion resistance

WF1、WF2

Entry thread

G1/2-G4、NPT1/2-NPT4或M20-114X1.5;

Cable diameter

合中6.5mm-中80mm电缆。
