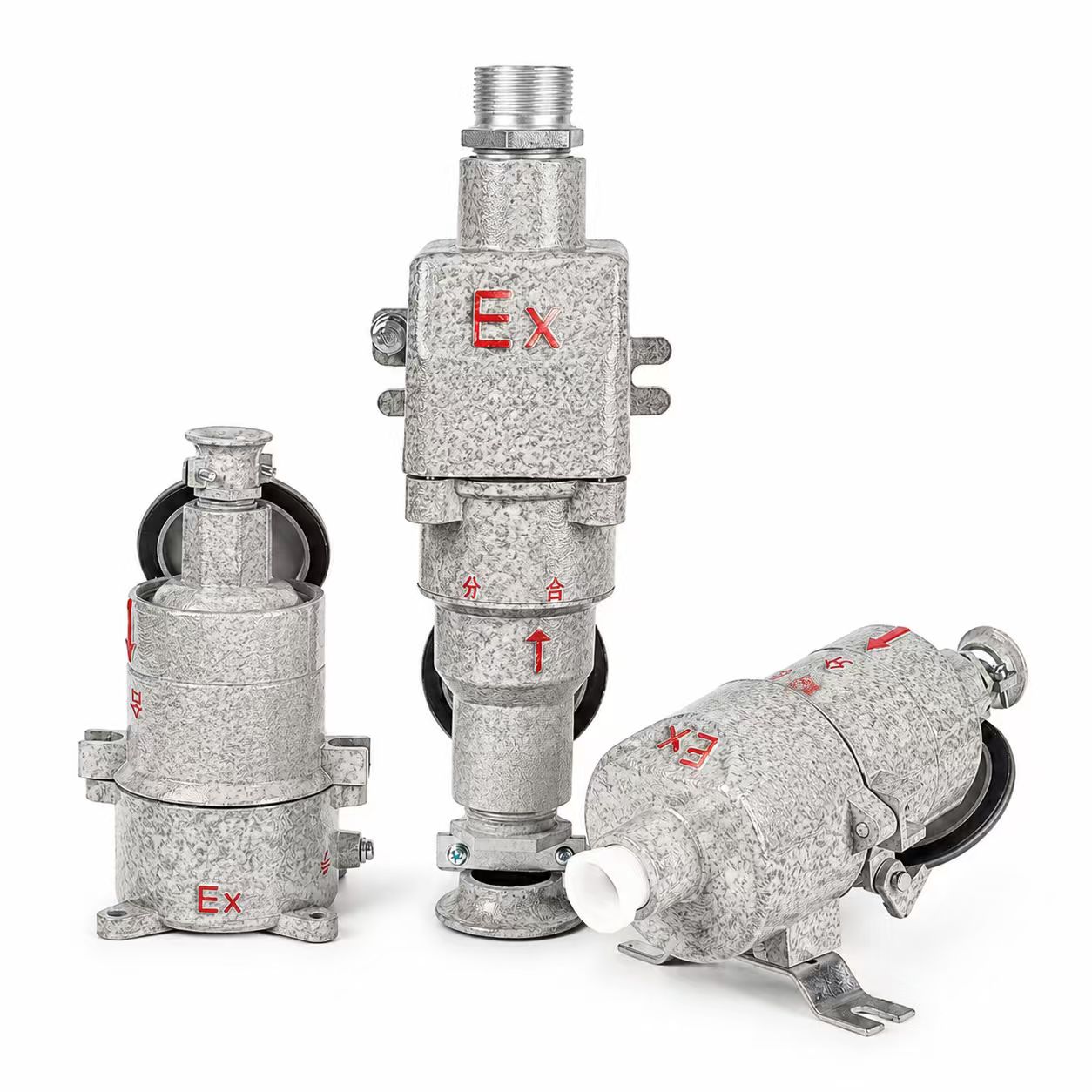

Explosion-Proof Interlocked Plug and Socket

PRODUCT OVERVIEW

Product Description

The powder-coated cast-aluminium enclosure incorporates an interlock that allows plug removal only after the internal switch has opened. Available pole and current configurations support portable equipment, maintenance tools and auxiliary power connections using cable or conduit wiring.

TECHNICAL DATA

Specifications

Explosion protection

ExdelICT5 Gb、ExtDA21IP66 T80°C

Rated voltage

AC220/380V(如有特殊要求请注明)

Rated current

16A、30A

Ingress protection

IP66

Corrosion resistance

WF1、WF2

Entry thread

G3/4、G11/4或NPT1.2

Cable diameter

$8mm-014mm $14mm-025mm

Pole configuration

1P+N+PE 3P+PE
