Explosion-Proof Corrosion-Resistant Plug and Socket

Corrosion-Resistant Explosion-Proof Equipment

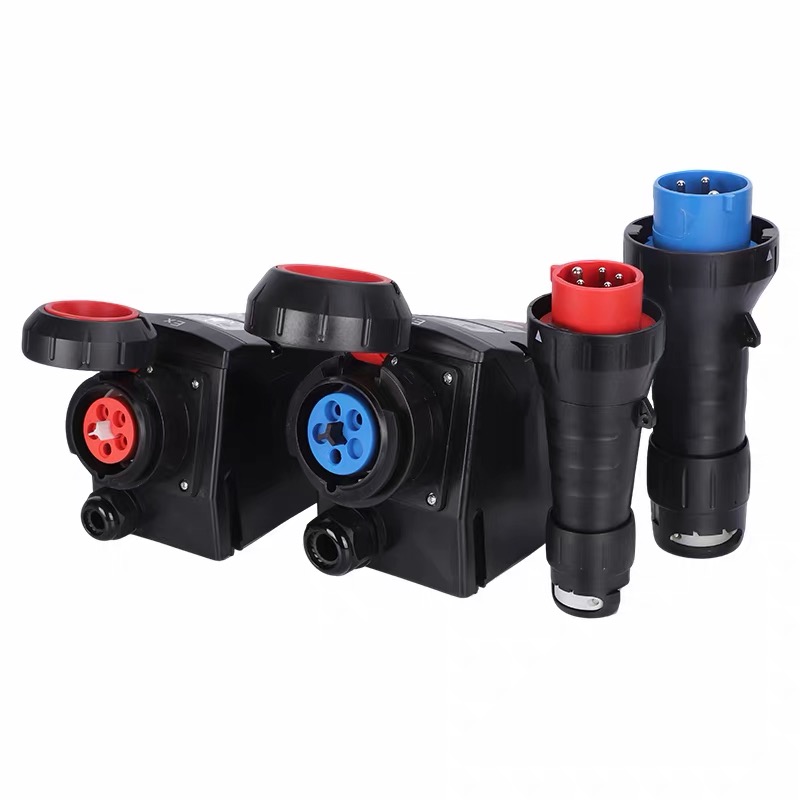

Explosion-Proof Corrosion-Resistant Plug and Socket

Model: BCZ

Interlocked engineering-plastic plug and socket for corrosive hazardous industrial locations.

corrosion resistant plug socketinterlocked industrial outlethazardous area connectorengineering plastic enclosure
Call UsSend InquiryWhatsApp

PRODUCT OVERVIEW

Product Description

The flame-retardant enclosure offers corrosion, impact and antistatic performance. A mechanical interlock prevents plug removal while energized, and a lockable cover supports safe isolation and site control when the outlet is not in use.

TECHNICAL DATA

Specifications

Explosion protection
Exde IICT6 Gb、ExtD A21IP66 T80°C
Rated voltage
AC220V/380V
Rated current
16A、32A、63A
Ingress protection
IP66
Corrosion resistance
WF2

PRODUCT DETAILS

Product Images

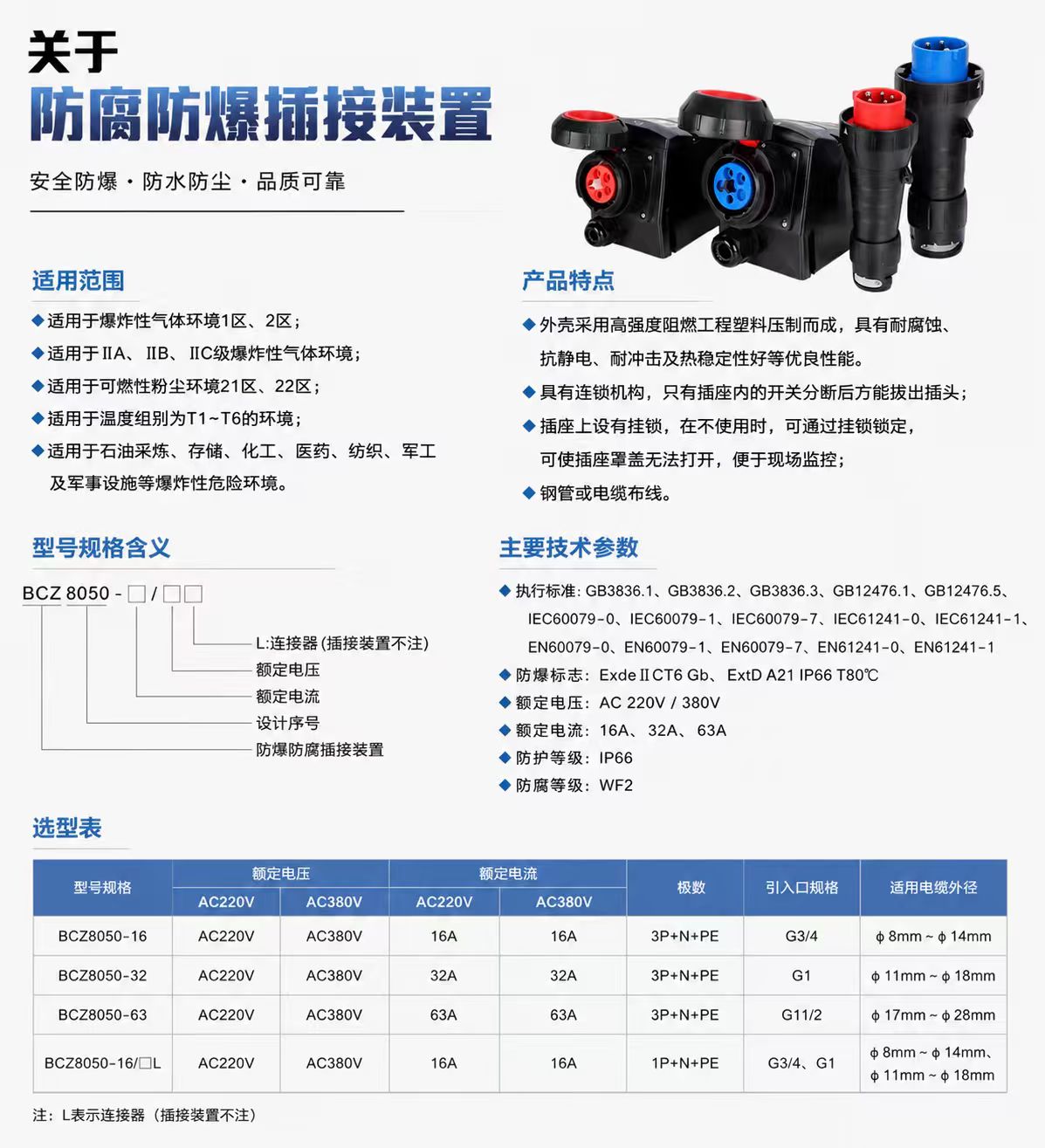

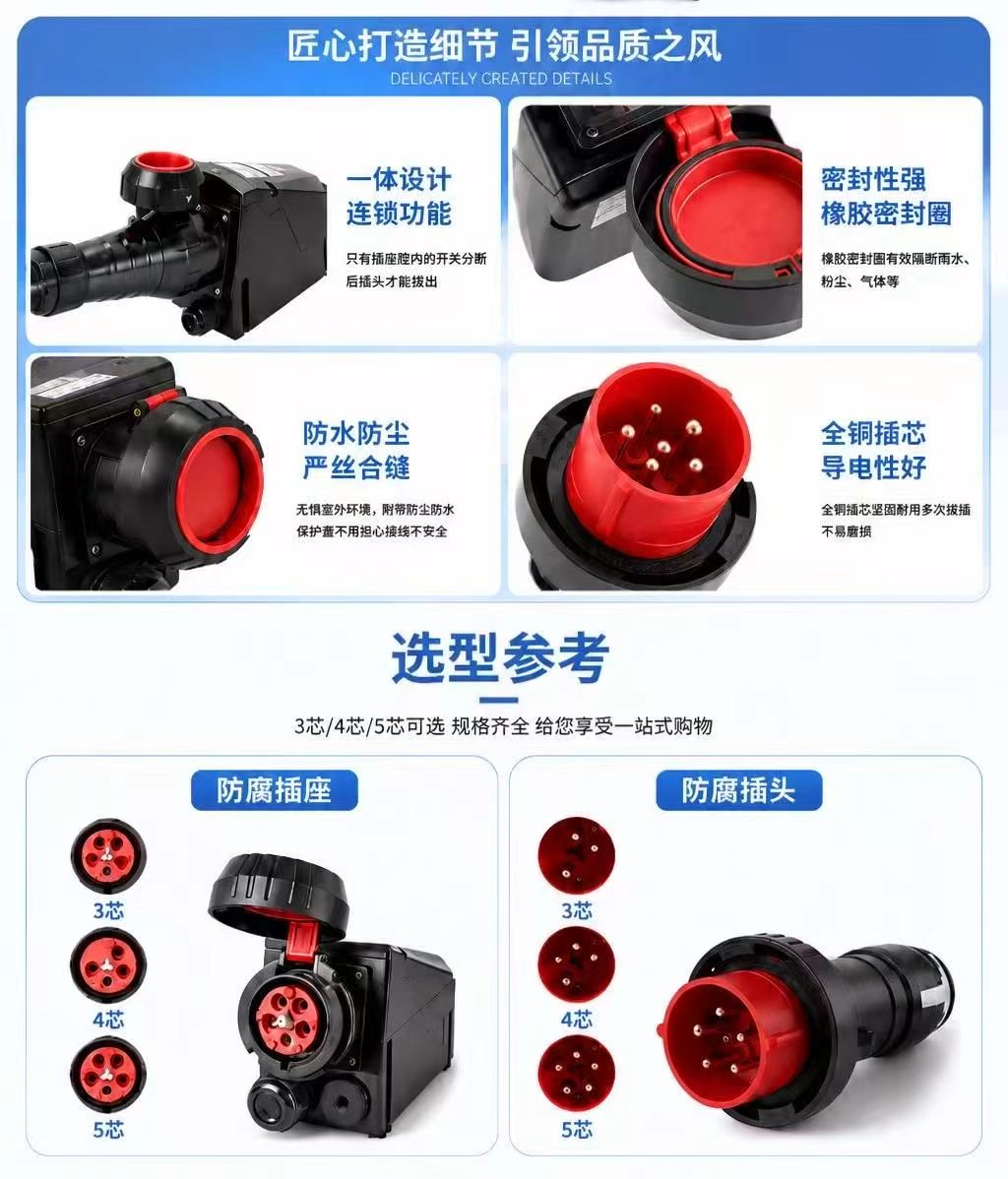

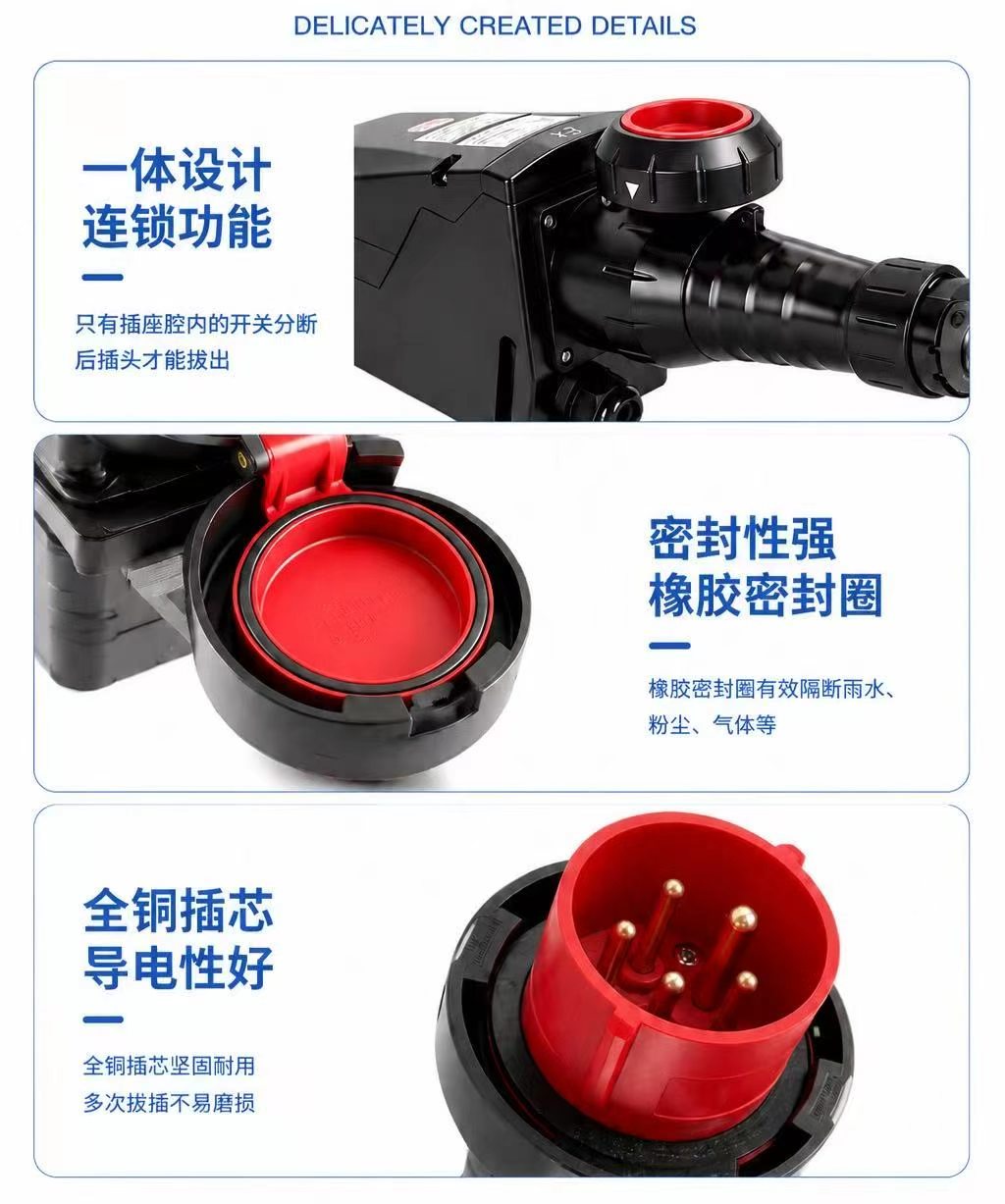

Explosion-Proof Corrosion-Resistant Plug and Socket detail 1Explosion-Proof Corrosion-Resistant Plug and Socket detail 2Explosion-Proof Corrosion-Resistant Plug and Socket detail 3
