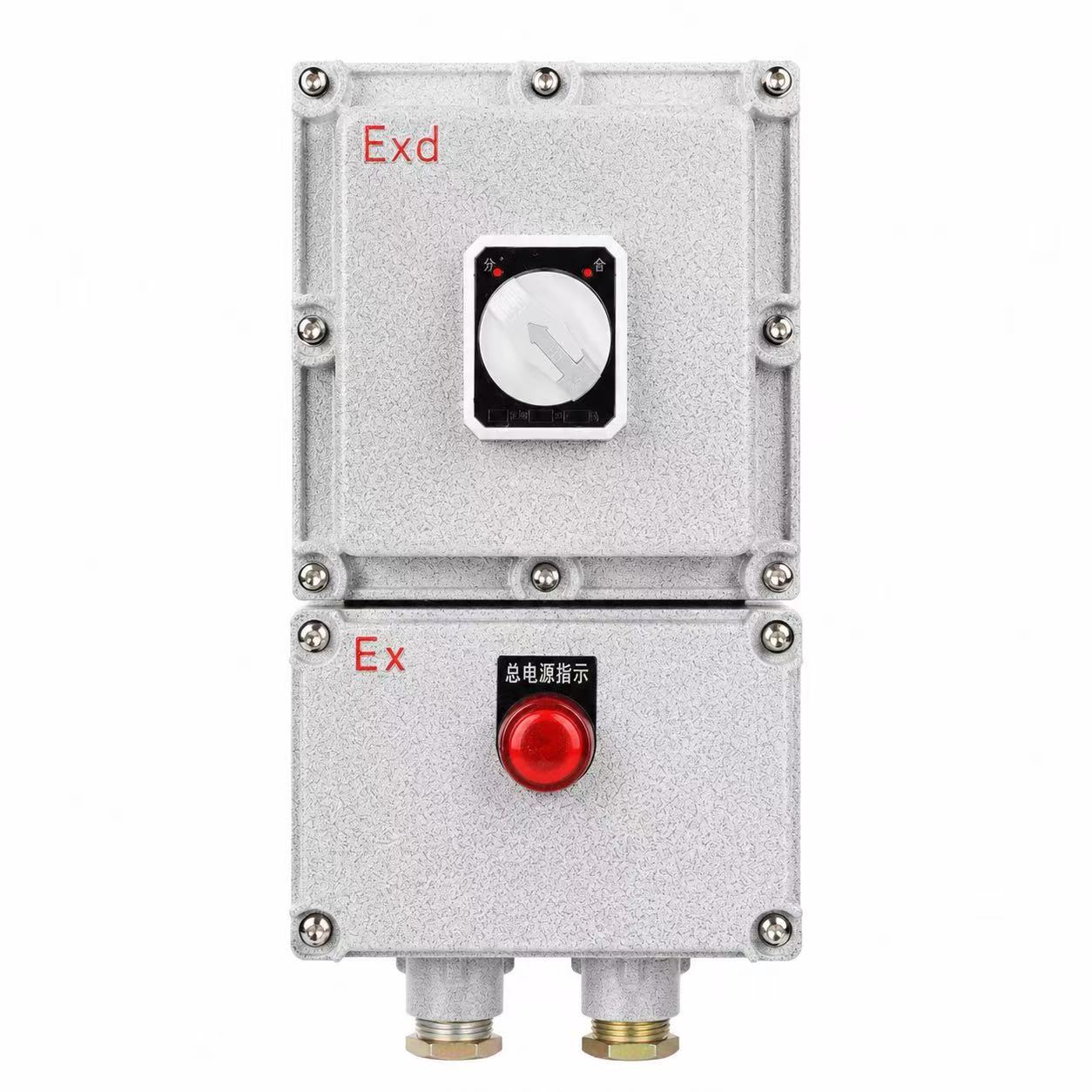

Explosion-Proof Circuit Breaker Enclosure

PRODUCT OVERVIEW

Product Description

The enclosure accepts miniature breakers up to 63 A or molded-case circuit breakers for higher current ratings, with optional leakage accessories and shunt-trip devices. Entry direction, mounting format and cable or conduit interfaces can be selected to match the distribution scheme and site wiring practice.

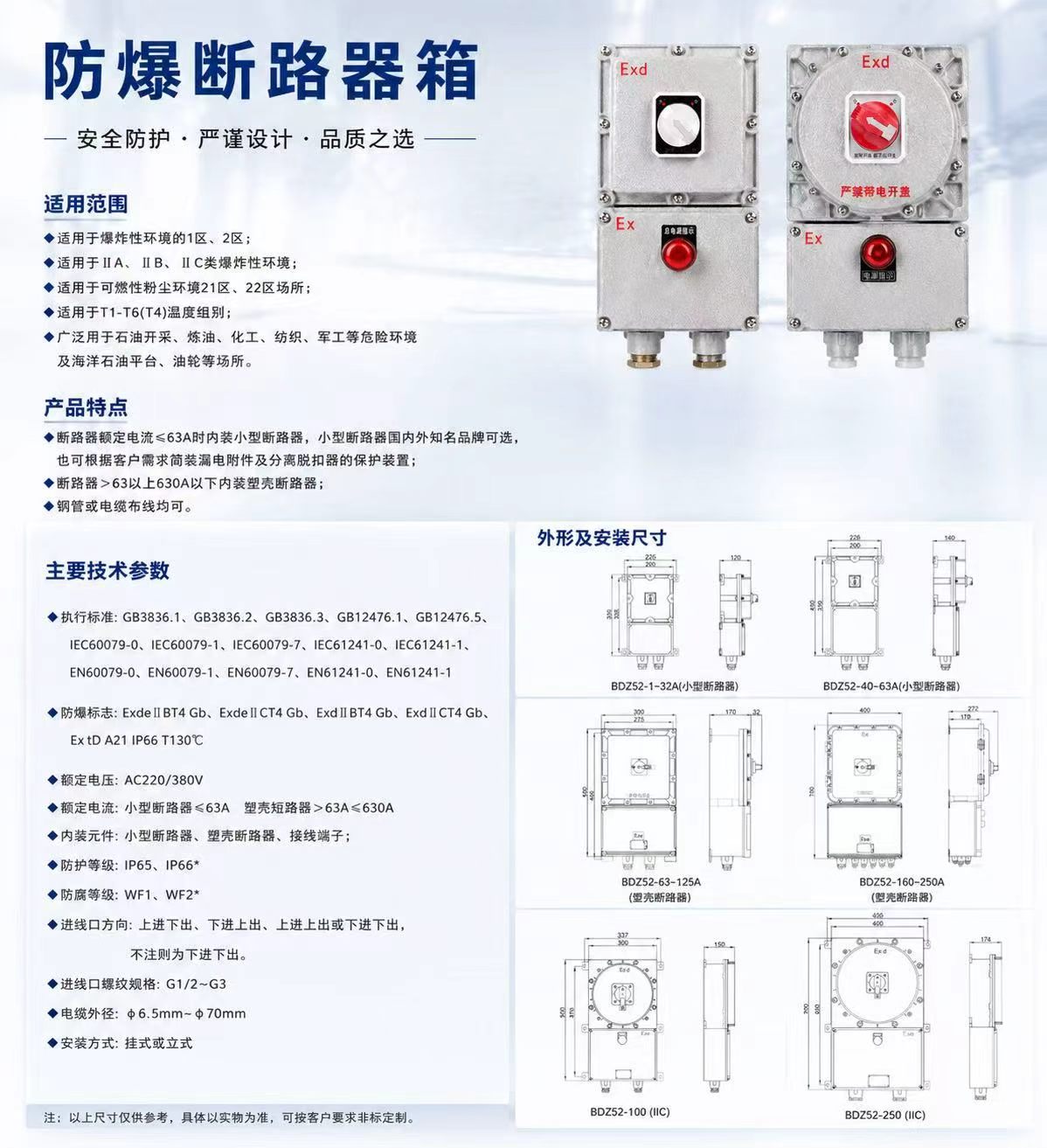

TECHNICAL DATA

Specifications

Explosion protection

Exde lIBT4 Gb、Exde lICT4 Gb、Exd IIBT4 Gb 、Exd IICT4 Gb 、Ex tDA21IP66 T130°C

Rated voltage

AC220/380V

Rated current

小型断路器≤63A

Internal components

小型断路器，塑壳断路器、接线端子;

Ingress protection

IP65、IP66

Corrosion resistance

WF1、WF2

Cable entry direction

上进下出、下进上出、上进上出或下进下出，不注则为下进下出。

Entry thread

G1/2~G3

Cable diameter

中6.5mm-070mm

Mounting

挂式或立式
