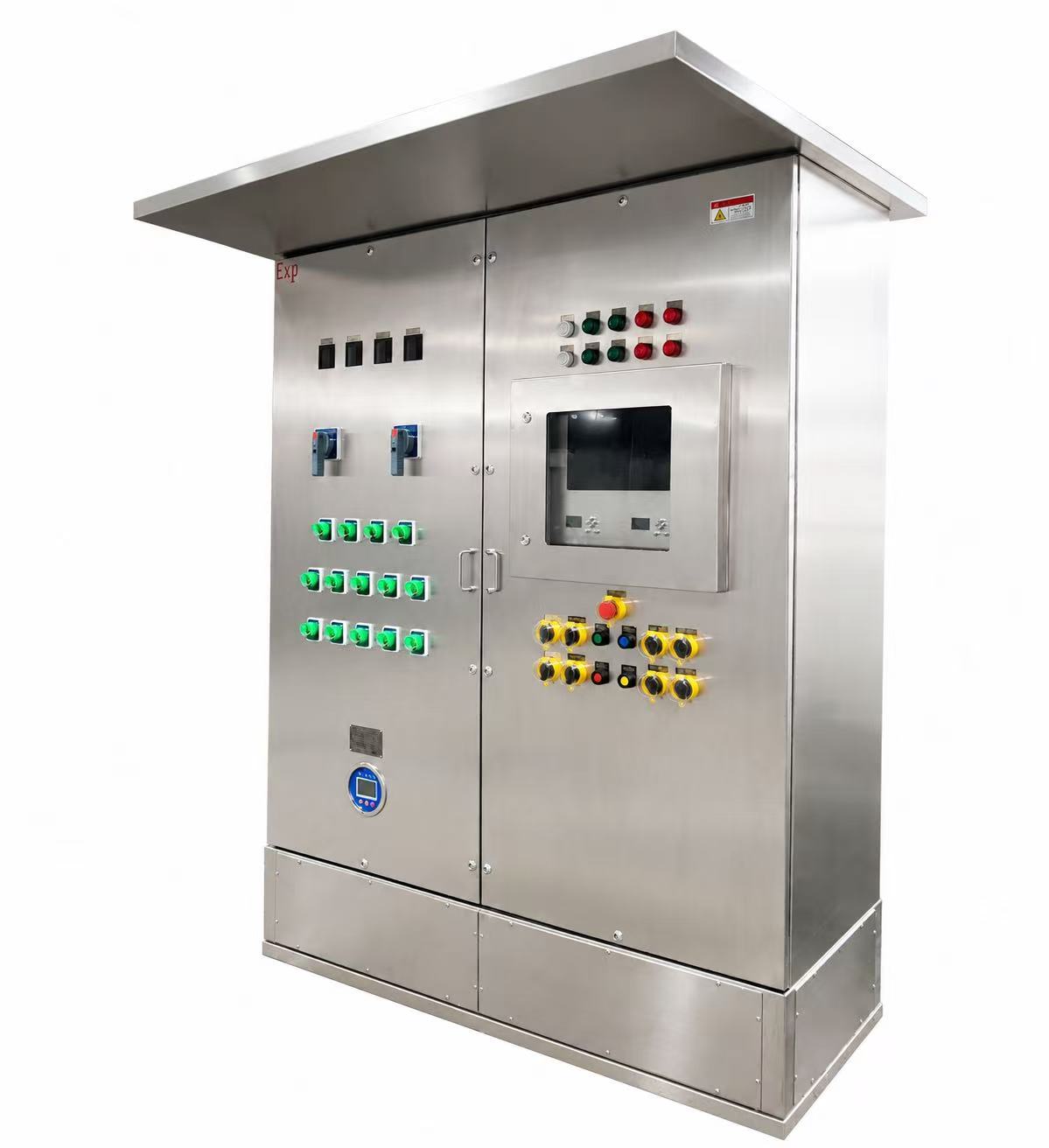

Stainless Steel Explosion-Proof Pressurized Cabinet

Custom Explosion-Proof Solutions

Stainless Steel Explosion-Proof Pressurized Cabinet

Model: PXK

Custom stainless-steel positive-pressure cabinet for corrosive hazardous-area control systems.

stainless pressurized cabinetEx p control panelcorrosion resistant enclosurecustom hazardous area cabinet

PRODUCT OVERVIEW

Product Description

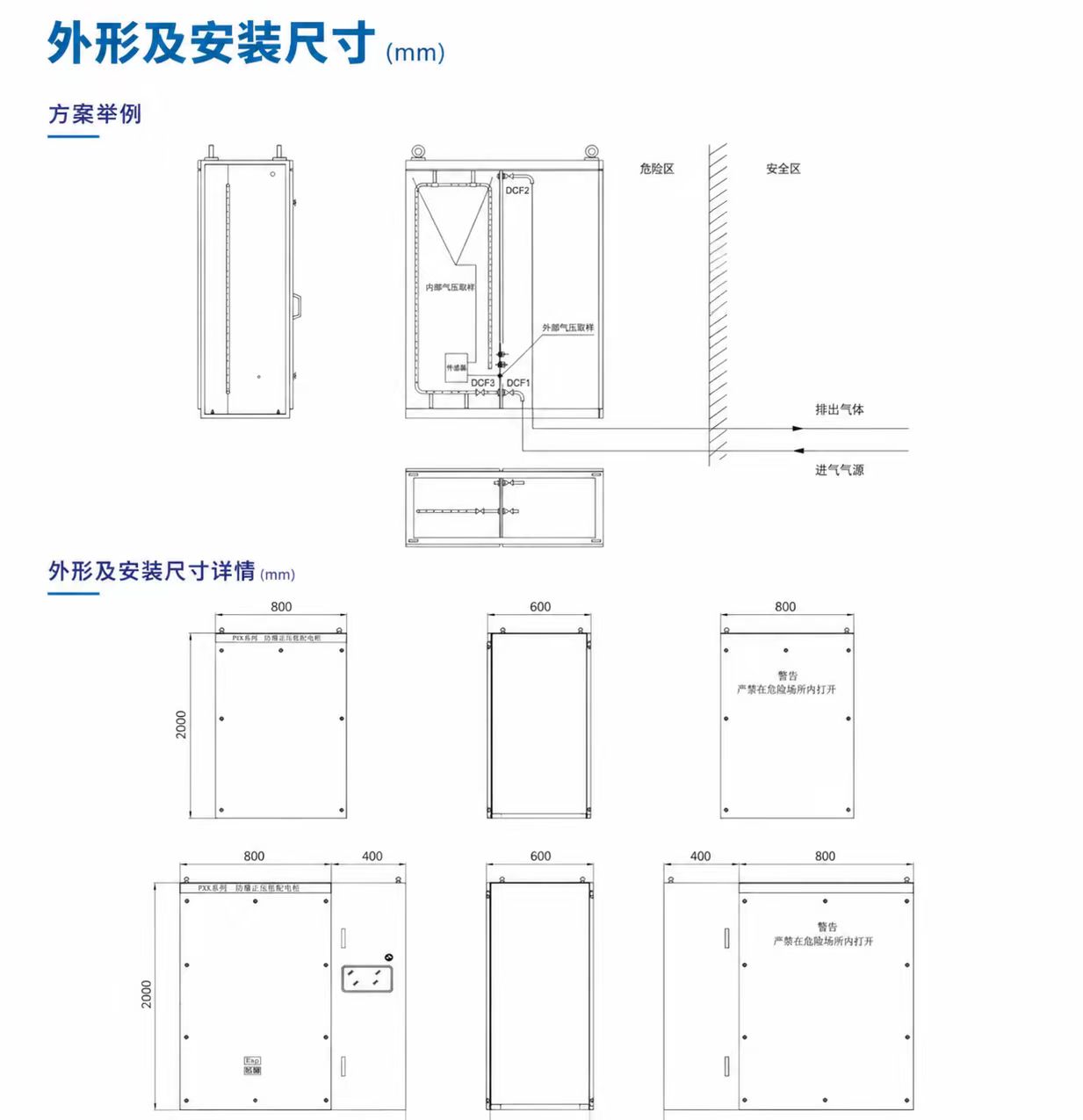

The enclosure separates the pressurized equipment chamber from the pneumatic control assembly and can be configured as a cabinet, console or wall-mounted box. Stainless construction, component layout, purge controls, cable entries and service access are tailored to the project drawings.

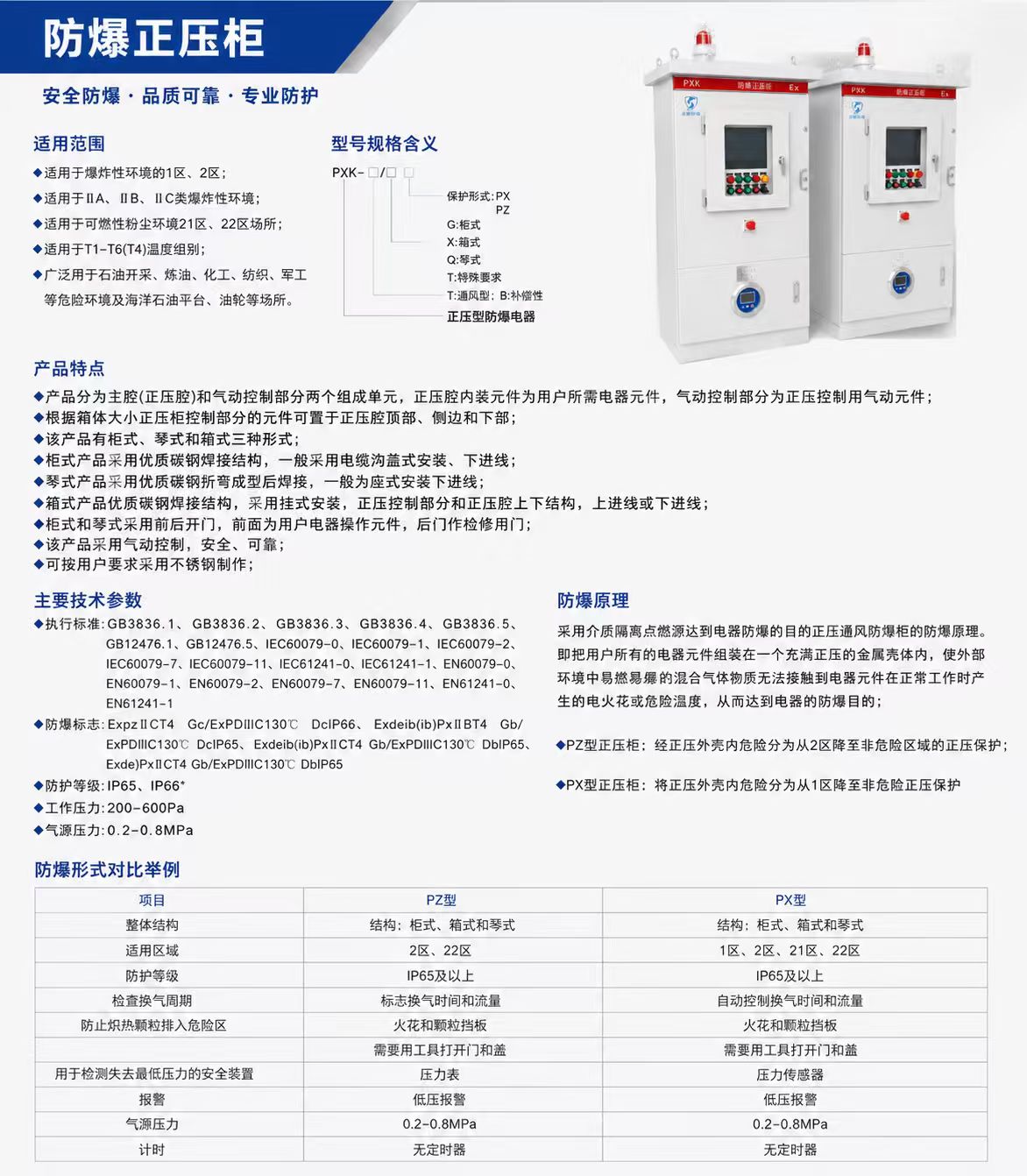

TECHNICAL DATA

Specifications

Explosion protection
Ex pz IIC T4 Gc / Ex pD IIIC 130℃ Dc IP66、
Ingress protection
IP65、IP66*
Operating pressure
200-600Pa
Supply air pressure
0.2-0.8MPa
