Explosion-Proof Audible and Visual Alarm

Explosion-Proof LED Lighting

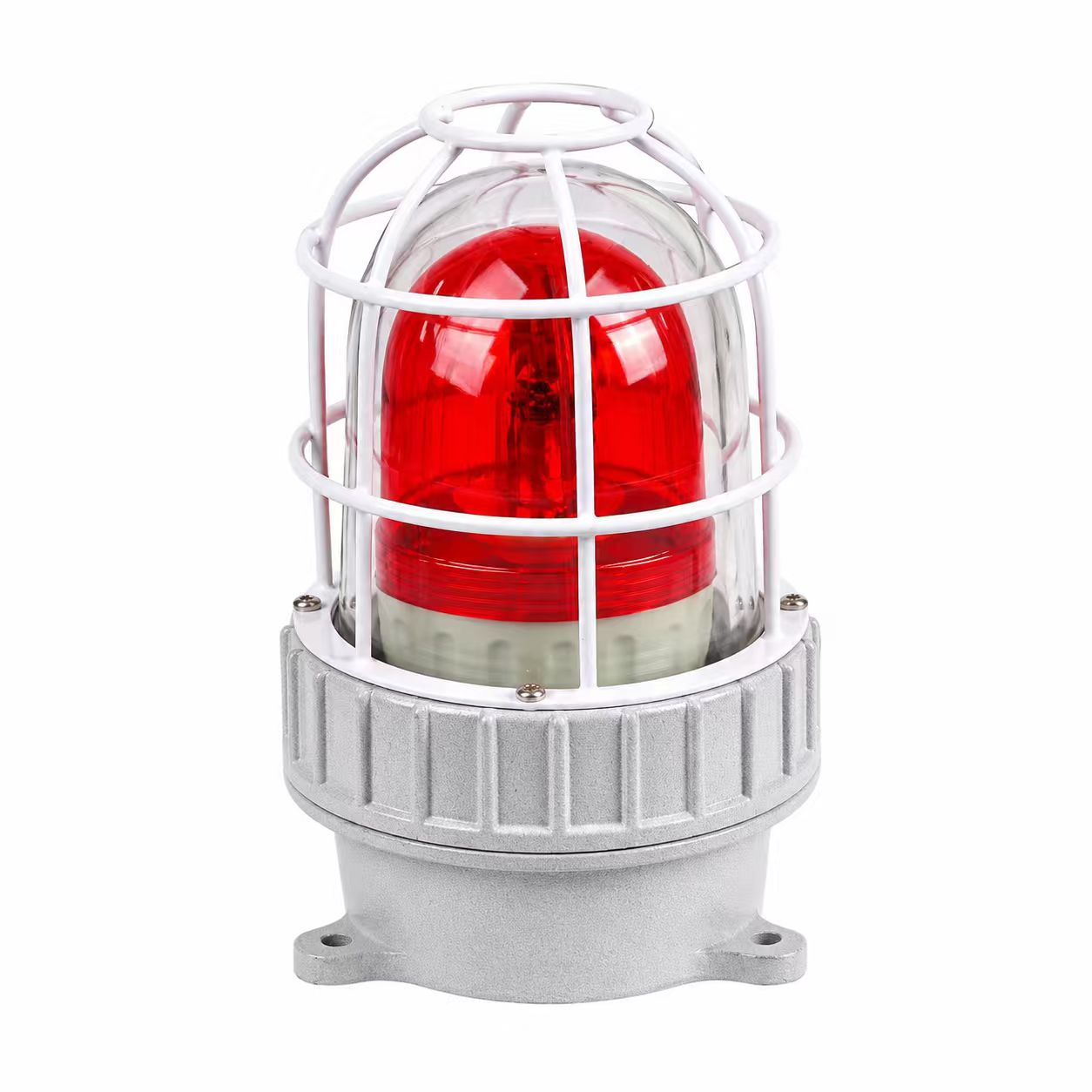

Explosion-Proof Audible and Visual Alarm

Model: BBJ

Combined LED beacon and high-output sounder for hazardous-area warning and status indication.

audible visual alarmexplosion-proof beaconindustrial sounderhazard warning device
Call UsSend InquiryWhatsApp

PRODUCT OVERVIEW

Product Description

The powder-coated cast-aluminium body, tempered-glass lens and stainless fasteners form a durable industrial alarm unit. It can provide simultaneous audible and flashing warning, or operate as a visual beacon when the sounder is omitted, for process alarms and emergency notification.

TECHNICAL DATA

Specifications

Explosion protection
Ex dlICT6 Gb/Ex tD A21 IP65 T80°C
Rated voltage
AC220V
Light source
LED
Flash rate
150/min
Sound output
>50dB、>110dB、>150dB
Ingress protection
IP65
引入装置
G3/4
Cable diameter
中9mm~中14mm

PRODUCT DETAILS

Product Images

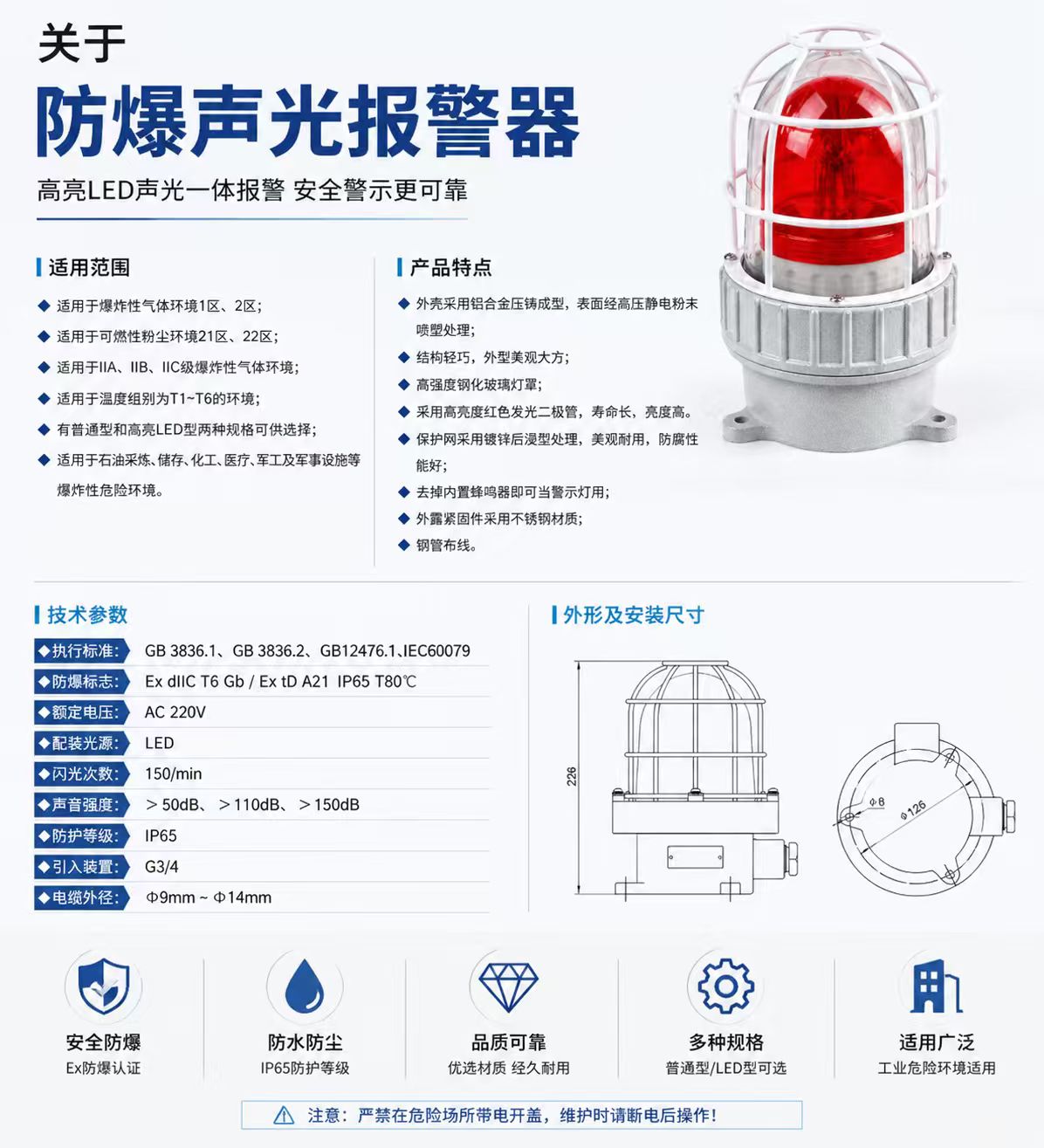

Explosion-Proof Audible and Visual Alarm detail 1
